Progressive Cavity Pumps

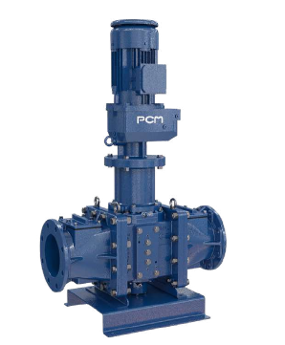

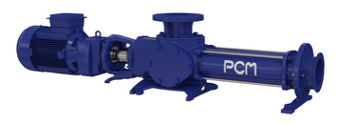

PCM Progressive Cavity Pumps
PCM brings more than 90 years of fluid-handling manufacturing experience to industries worldwide. RC Beach & Associates represents PCM’s engineered progressing cavity pumps in Florida for sludge feed, transfer, loading and conveyance in municipal water and wastewater applications.
Talk to an Application Engineer
Every PCM pump is built on Moineau™ technology

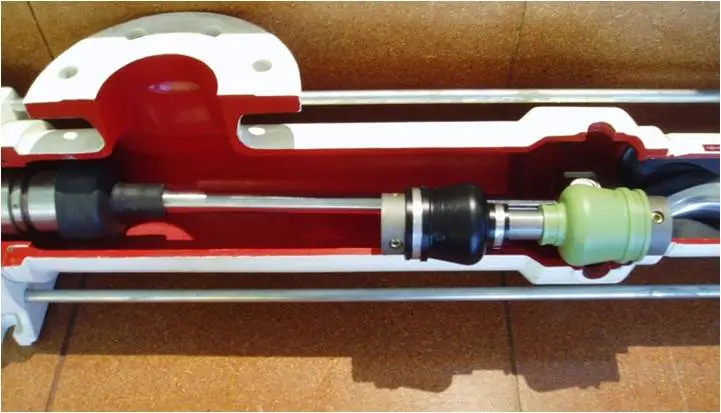

Named for its inventor, René Moineau: a precision-machined stainless steel helical rotor turns inside a moulded elastomer helical stator. Together they form a double chain of sealed, honeycomb-shaped cavities that travel spirally along the axis of the pump without ever changing shape or volume — the product is carried through the pump rather than pushed, sheared or churned.
That geometry suits the two fluids that give centrifugal equipment the most trouble: fragile products that degrade under shear, and viscous products that resist being moved at all. Thickened and dewatered municipal sludge is both.
Built for thick, sensitive sludge
Why progressing cavity pumps are a fit for municipal sludge feed and transfer.
Constant, non-pulsating flow
No pressure spikes passed to polymer injection, dewatering or thermal drying downstream.
Flow proportional to speed
VFD control gives repeatable, predictable throughput across the operating range.
Very low shear
Floc structure and fragile solids survive the transfer.
High suction and self-priming
Pulls from wet wells, hoppers and silos.
Fully reversible
Run backward to clear a line or drain a section.
High pressure at high viscosity
Higher discharge pressure than most positive-displacement alternatives, at high or variable viscosity.

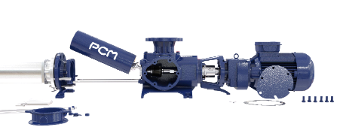

Maintenance In Place
Maintenance In Place is standard across the PCM EcoMoineau™ MX range. The stator and/or rotor is replaced in five steps, with the pump still bolted in its installation — no breaking piping, no lifting the unit out, no re-alignment on restart.
The maintenance window shrinks accordingly, and downtime and life-cycle cost drop with it. RC Beach stocks replacement stators and rotors and provides field service for PCM equipment across Florida.
See the PCM EcoMoineau™ MX
Watch how the pump works and how Maintenance In Place keeps it in service.
PCM EcoMoineau™ MX
Skid-mounted and ready to run
PCM also builds turnkey skid systems that shorten the integration of a pumping solution into an existing process. A ready-to-use skid arrives with the pump, accessories and control panel mounted and wired — one delivery, one set of connections, one commissioning visit.
Standard configurations cover common municipal duties, and PCM engineers custom skids where the application calls for it. Built to a high standard, the systems hold down long-run maintenance and spare-parts cost. Skid packages are commonly paired with chemical feed systems for polymer conditioning ahead of dewatering equipment.

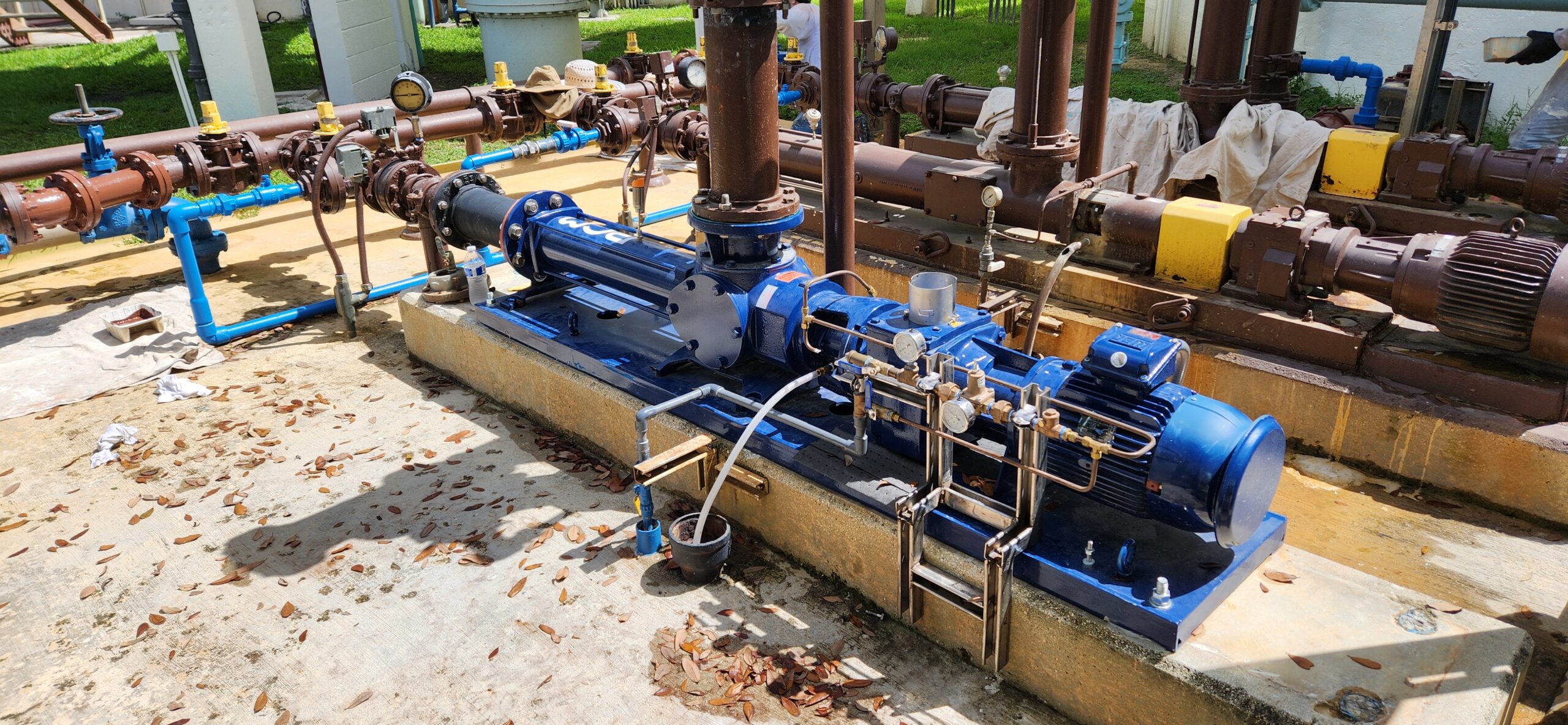

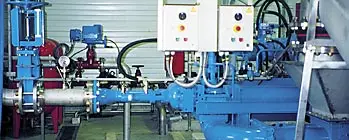

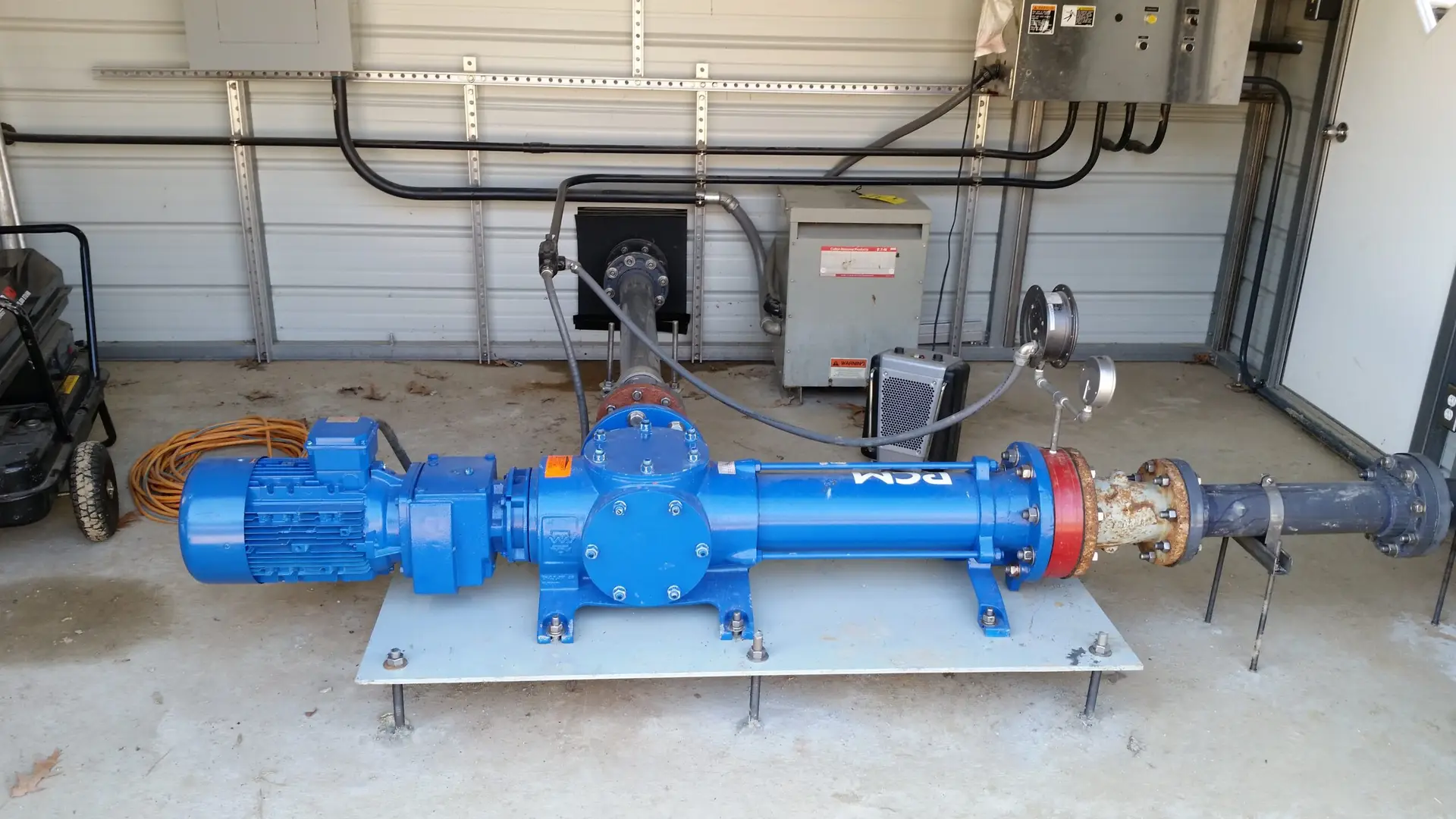

PCM pumps at work
Installations and configurations for sludge feed and transfer.
Talk to an application engineer
RC Beach & Associates has been sizing and specifying water and wastewater equipment for Florida municipalities since 1980. Send us the duty — solids, viscosity, flow and head — and we will come back with a PCM selection.
